Solving the task optimization problem using quasi-Newton methods#

Introduction#

In paragliding competitions, pilots rely on their flight instruments to compute the shortest route to the goal. Such a route is defined as being the shortest path intersecting each turnpoint circumference at least once, in a predefined order. Given a current position and a set of remaining turnpoints, the task optimization problem is to find this shortest route and its attributes: total distance, consecutive legs distances and optimized points defining the route.

Here, I propose a solution to the task optimization problem in two-dimensional Euclidean space, but the result can be applied to any space as long as the distance metric is properly defined. Namely, it can be used in real world task optimizations relying on FAI sphere or WGS84 ellipsoid spaces.

Example#

The following task is given as an illustation of the problem.

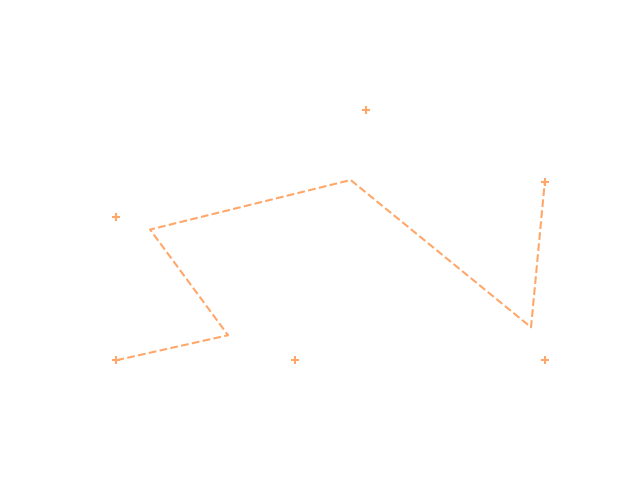

The pilot is currently at the point labeled Position. To reach the goal, it must first cross all turnpoints circumferences in the predefined order: TP1, TP2, TP3, TP4, and then go to Goal. We want to compute the shortest path satisfying the validation of the task, which is the route shown using the dashed line.

Current strategy#

This algorithm is usually implemented by exploiting geometrical properties the problem. For example:

Consider three distinct consecutive turnpoints TP1, TP2 and TP3. The optimized point of TP2 must lie at the intersection of its circumference and the bisector of the angle formed by the centers of these three turnpoints.

This geometrical approach yields correct results in the ideal case, where all the turnpoints have distinct centers, and where a valid path going straight to goal does not exist. These two assumptions are quite restrictive, as successive concentric turnpoints are quite common, and the possibility that the shortest path has to go through a turnpoint (crossing the circumference of a single turnpoint at two distinct points) always exists.

While it would certainly possible to create a set of rules identifying every corner case, it is very tedious and error-prone.

A new approach#

The proposed alternative considers the total distance of the route as an objective function, and minimizes this function using quasi-Newton methods. An example implementation is given in Python.

The objective function $f$ takes 3 $n$-dimensional fixed parameters, $n$ being the number of remaining turnpoints + 1 (as the pilot’s current position is a necessarily an optimized point of the shortest path). These parameters completely define the task:

$x$ and $y$ vectors represent the center coordinates of each turnpoint (including the current position)
$r$ represents the turpoints radii vector (current position has a radius of 0, though it doesn’t really matter).

The variable parameter of this objective function is $\theta$, a $n$-dimensional vector representing the angles at which the turnpoints centers can be projected onto their circumference to define the optimized route points.

If we consider the example given as illustration, we have

$$ x = \begin{bmatrix} 0 \\ 5 \\ 0 \\ 7 \\ 12 \\ 12 \\ \end{bmatrix} \quad y = \begin{bmatrix} 0 \\ 0 \\ 4 \\ 7 \\ 0 \\ 5 \\ \end{bmatrix} \quad r = \begin{bmatrix} 0 \\ 2 \\ 1 \\ 2 \\ 1 \\ 0 \\ \end{bmatrix} \quad \theta = \begin{bmatrix} \theta_0 \\ \theta_1 \\ \theta_2 \\ \theta_3 \\ \theta_4 \\ \theta_5 \\ \end{bmatrix} $$

And we are looking for the angles $\theta_0, \theta_1, \dotsc,\theta_n$ such that $f(\theta, x, y, r) = d$ with $d$ being a global minimum of $f$. To do so, we can use a quasi-Newton method, which tweaks the $\theta$ coordinates until the computed distance d reaches the minimum of $f$.

Python implementation#

import numpy as np
from scipy.optimize import minimize

The objective function in the two-dimensional Euclidean space is pretty simple: it computes the sum of the consecutive distances between the optimized points. The optimized points are computed using trigonometric projections. When using real-world Earth-related metrics, solutions to the geodesic problems are used instead.

def tasklen(θ, x, y, r):
    x_proj = x + r * np.sin(θ)
    y_proj = y + r * np.cos(θ)

    dists = np.sqrt(np.power(np.diff(x_proj), 2) + np.power(np.diff(y_proj), 2))

    return dists.sum()

We use scipy’s BFGS solver to compute the minima of our objective function. All angles are in degrees, in range [-180, 180], relative to the north direction given by the y-axis.

# center coordinates and radii of turnpoints
X = np.array([0, 5, 0, 7, 12, 12]).astype(float)
Y = np.array([0, 0, 4, 7, 0, 5]).astype(float)
R = np.array([0, 2, 1, 2, 1, 0]).astype(float)

# first initialization vector, an array of zeros
init_vector = np.zeros(R.shape).astype(float)

result = minimize(tasklen, init_vector, args=(X, Y, R), tol=10e-5)

Objective function has been evaluated 104 times
Optimizer performed 11 iterations
Angles minimizing the objective function : ['0.00', '-69.52', '109.84', '-167.32', '-22.68', '0.00']

The resulting angles can then be used to compute the optimized route points.

Now that the optimized angles have been computed a first time from scratch, they can be reused as an initialization vector for the next optimization, reducing the number of iterations needed to converge. When the pilots moves from one position to the next, the optimized angles are unlikely to drastically change so the computation time is reduced.

# pilot slightly moves forward
X[0] = X[0] + 0.1
Y[0] = Y[0] + 0.1

# reuse the last result as initialization vector
init_vector = result.x

result = minimize(tasklen, init_vector, args=(X, Y, R), tol=10e-5)

Objective function has been evaluated 56 times
Optimizer performed 3 iterations
Angles minimizing the objective function : ['0.00', '-69.05', '109.75', '-167.32', '-22.68', '0.00']

Test cases#

Here are a couple test cases showing the expected behaviour on tricky cases without any modifications to the algorithm.

Successive concentric turnpoints#

# concentric case
X = np.array([0, 10, 10, 10, 15, 2]).astype(float)
Y = np.array([0, 10, 10, 10, 2, 0]).astype(float)
R = np.array([0, 2, 10, 5, 1, 0]).astype(float)
init_vector = np.zeros(R.shape).astype(float)

result = minimize(tasklen, init_vector, args=(X, Y, R), tol=10e-5)

Objective function has been evaluated 168 times
Optimizer performed 15 iterations
Angles minimizing the objective function : ['0.00', '-166.21', '164.56', '157.72', '-68.48', '0.00']

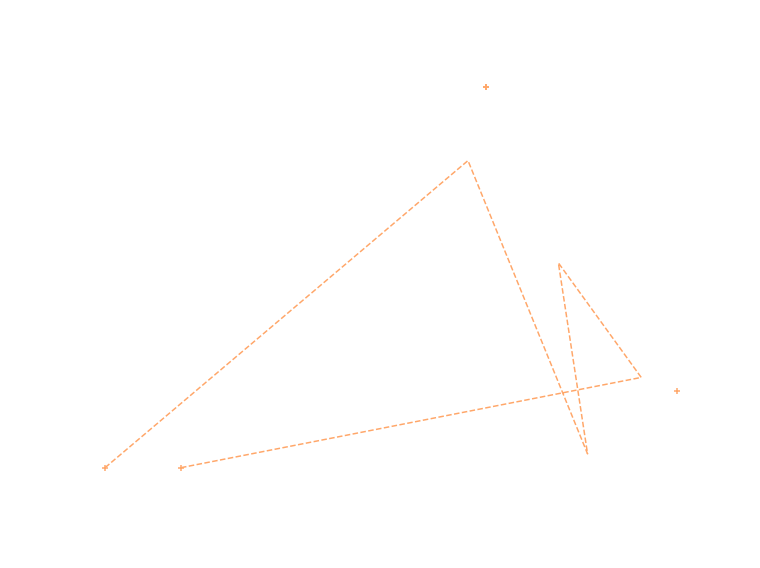

Concentric turnpoints with optimized route

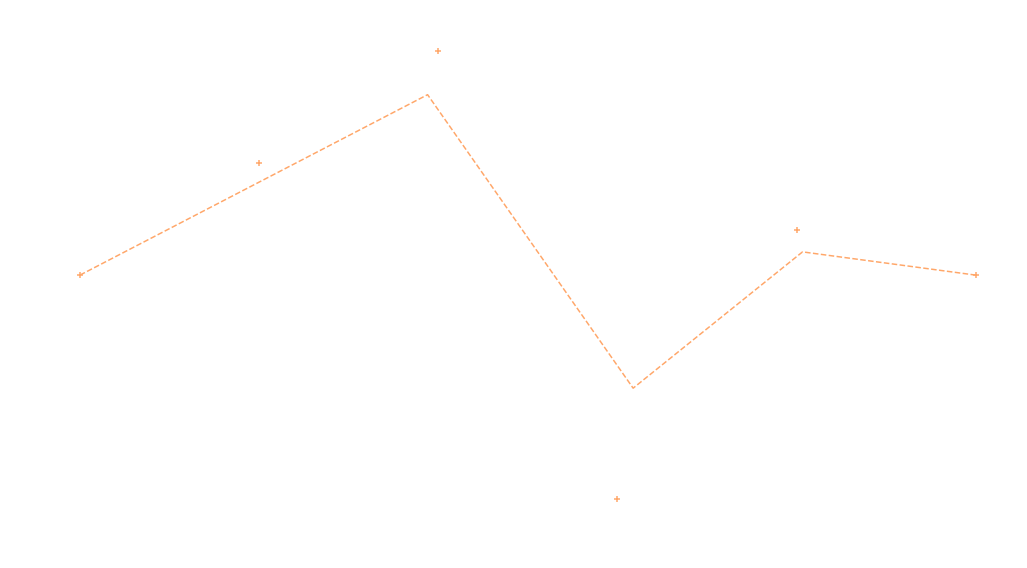

Route traversing a turnpoint#

# direct route case
X = np.array([0, 8, 16, 24, 32, 40]).astype(float)
Y = np.array([0, 5, 10, -10, 2, 0]).astype(float)
R = np.array([0, 3, 2, 5, 1, 0]).astype(float)
init_vector = np.zeros(R.shape).astype(float)

result = minimize(tasklen, init_vector, args=(X, Y, R), tol=10e-5)

Objective function has been evaluated 120 times
Optimizer performed 10 iterations
Angles minimizing the objective function : ['0.00', '77.09', '-166.22', '8.09', '164.41', '0.00']

Discussion#

This solution to the task optimization problem has the following advantages:

only the first optimization is computationally expensive
no assumption is made regarding the geometry of the task
hyperparameters of the solvers can be tuned to converge faster for this specific problem
it is quite concise, as long as you don’t implement your own solver

However, it may have some flaws:

if the solver converges towards a local minimum and not a global one, we would have to use basinhopping to find the global minimum, which is more expensive (such a case hasn’t been observed yet)
though this solution seems to yield acceptable results on small-scale examples, it hasn’t been thoroughly tested yet, so feel free to play around with it and discover corner cases

If you have any suggestion, request or if you found a degenerate case, feel free to send me an email.

Use this code#

All the above code is licensed under the GNU General Public License v3, which means you can use it for all purposes, as long as you disclose the source (wink wink @ XCTrack developpers).
